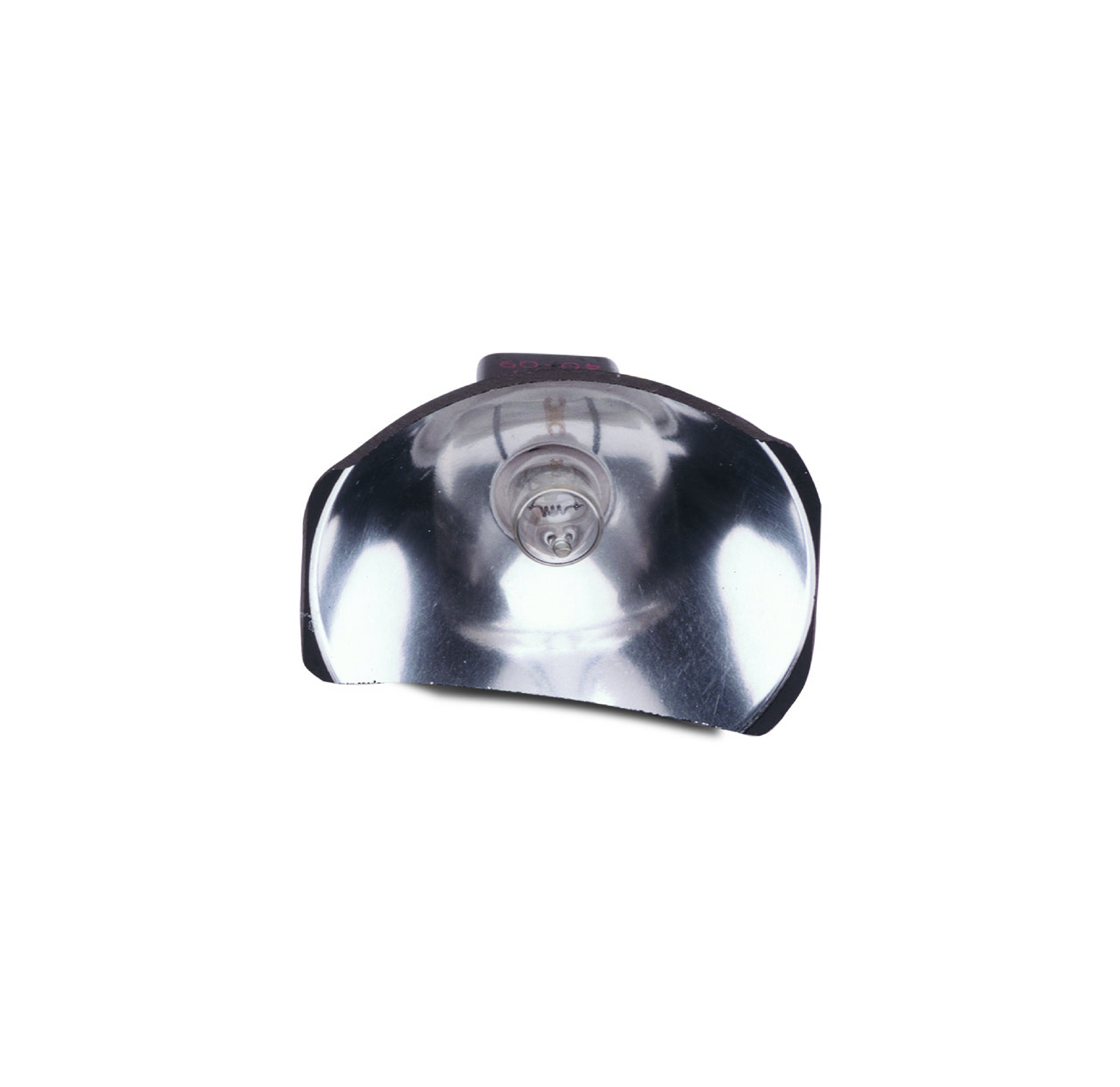

70303 Series Wing Tip Recognition Light Assembly
Wing tip recognition light assy. using a 25 watt halogen lamp. Used on Mooney Aircraft.
Wing tip recognition light assy. using a 25 watt halogen lamp. Used on Mooney Aircraft.
Wing Tip Recognition Light Assembly - 70303 Series
Tech Specs
- Drawing Number: 70303
- Weight: 0.1 lbs. (45gm)
- Width: 2.1 (53mm)
- Height: 1.25 (32mm)
- Depth: 1.8 (46mm)
- Power Consumption: 2 amps @ 14 VDC, 1 amp @ 28 VDC
Model | Part # | Description | STC | Approvals |
7030300 | 01-0770303-00 | Recognition Light, 14V, 25W | None | pmasup24 FAA/PMA |
7030301 | 01-0770303-01 | Recognition Light, 28V, 25W | None |
