90325 Series LED Wing Tip Anti-Collision - Encore/Excel
![90325 Series LED Wing Tip Anti-Collision](http://flywat.com/cdn/shop/products/90325-green-white2_2048x-d_92x92_crop_center.jpg?v=1631127153)
![90325 Series LED Wing Tip Anti-Collision Installed on Aircraft](http://flywat.com/cdn/shop/products/560XLS_Pictures_001_92x92_crop_center.jpg?v=1631127173)

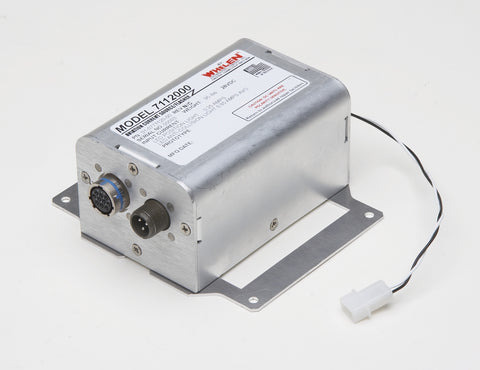

Model 90325 and 71120 (current source) are an all LED solution to Cessna Citation wingtip strobe legacy products manufactured by Whelen. A direct replacement for Whelen's 90206 wingtip products. The 90325 will retrofit Models 550, S550, 560 or is able to be modified to fit other wings of similar design. Available in 28V Only.
Model 90325 and 71120 (current source) are an all LED solution to Cessna Citation wingtip strobe legacy products manufactured by Whelen. A direct replacement for Whelen's 90206 wingtip products. The 90325 will retrofit Models 550, S550, 560 or is able to be modified to fit other wings of similar design. Available in 28V Only.
LED Wing Tip Anti Collision Light - 90325 Series
Tech Specs
- Dimensions: 10.24" (6mm) Long x 3.11" (79mm) Wide
- Exposed Height: 2.61" (66mm)
- Current: 0.85a Average, 4.5a Peak
- Weight: 1.2 lbs (544gm)
- Lens: Clear Polycarbonate
Model | Part # | Description | Approvals |
9032501 | 01-0790325-01 | LED Wing Tip Anti-Collision/Green Nav - Encore/Excel | FAA/TSO-C96a, TSO-C30c Types I |
9032502 | 01-0790325-02 | LED Wingtip Anti-Collision/Red Nav - Encore/Excel | FAA/TSO-C96a, TSO-C30c Types II |
Documents
USED WITH FLASHER
7123403 PURCHASED SEPARATELY.
