GSE Apex Work Light

Designed to deliver maximum light intensity, the low-profile Apex Series is available in multiple spot, flood, and scene optic combinations. Increase clarity with Whelen's all-new, patent pending Proclera™ Silicone Optics. The Apex Series features optional integrated warning and clearance lights for optimal illumination and visibility. Mounting brackets not included must purchase separately.

Regular price $1,050.00

Options

Product image 1Ground Support Equipment (GSE) Apex Work Light
Product image 2Ground Support Equipment (GSE) Apex Work Light Front View
Product image 3Ground Support Equipment (GSE) Apex Work Light Close Up
Product image 4GSE Apex Work Light
Product image 5GSE Apex Work Light Close Up
Product image 6Ground Support Equipment (GSE) Apex Work Light Bracket
Product image 7Ground Support Equipment (GSE) Apex Work Light Bracket
Tech Specs
  • SPECS SAE 578 Color Temperature Certified
  • Preconfigured spot, flood, or scene optics
  • Available with White illumination
  • Warning lights require remote flasher, purchased separately
  • Individual control of each set of optics
  • Increase clarity with Whelen's all-new, patent pending Proclera™ Silicone Optics Hard-coated lenses minimize environmental damage from sand, sun, salt, and road chemicals
  • Extruded and die-cast aluminum powder coated housing available in gray
  • Screwless lens retainer design provides a clean finish and the improved ability to adjust optic configuration 100% solid-state electronics
  • Rated IP67 for dust and water resistance
  • Rear mounting track for flexible mounting configurations Bail bracket mount standard
  • Includes 30" cable, connector, and heat shrink tubing. Some assembly required
  • Dual voltage (10-30 VDC input)
  • Five year warranty
  • Module count is per 3 LEDs (each silicone optic)
  •  Overall size does not include mounting hardware or cable entry
  • Side bail brackets add 2" to width
  • Depth to cable entry is 3.22"
  • Current draw is calculated at l2.8VDC
  • Mounting brackets not included must purchase separately.

    Part & Model Numbers

    Model

    Part Number

    Description

    FLAPX30

     01-0690889-00

    Apex 30" Work Light
    FLAPX44 01-0690889-01 Apex 44" Work Light

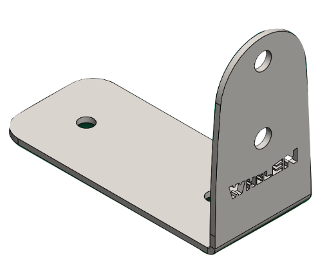

    SUBKT1B 01-0447823-10 Universal "L" Mounting Brackets for 9" to 44" Models, Black.

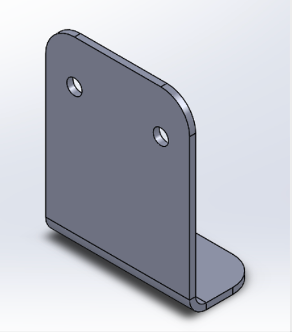

    SUBKT3B 1-0419234-01 New! Universal "L" Mounting Bracket, Horizontal, Non Adjustable, Black. Up to 30" Requires 2 Brackets, 38" - 44" Requires 3 Brackets, 72" Requires 4 Brackets, and 86" Requires 5 Brackets.
    Dimensions
    Documents

    Apex Product Sheet

    FLAPX30, FLAPX44 Install Guide
