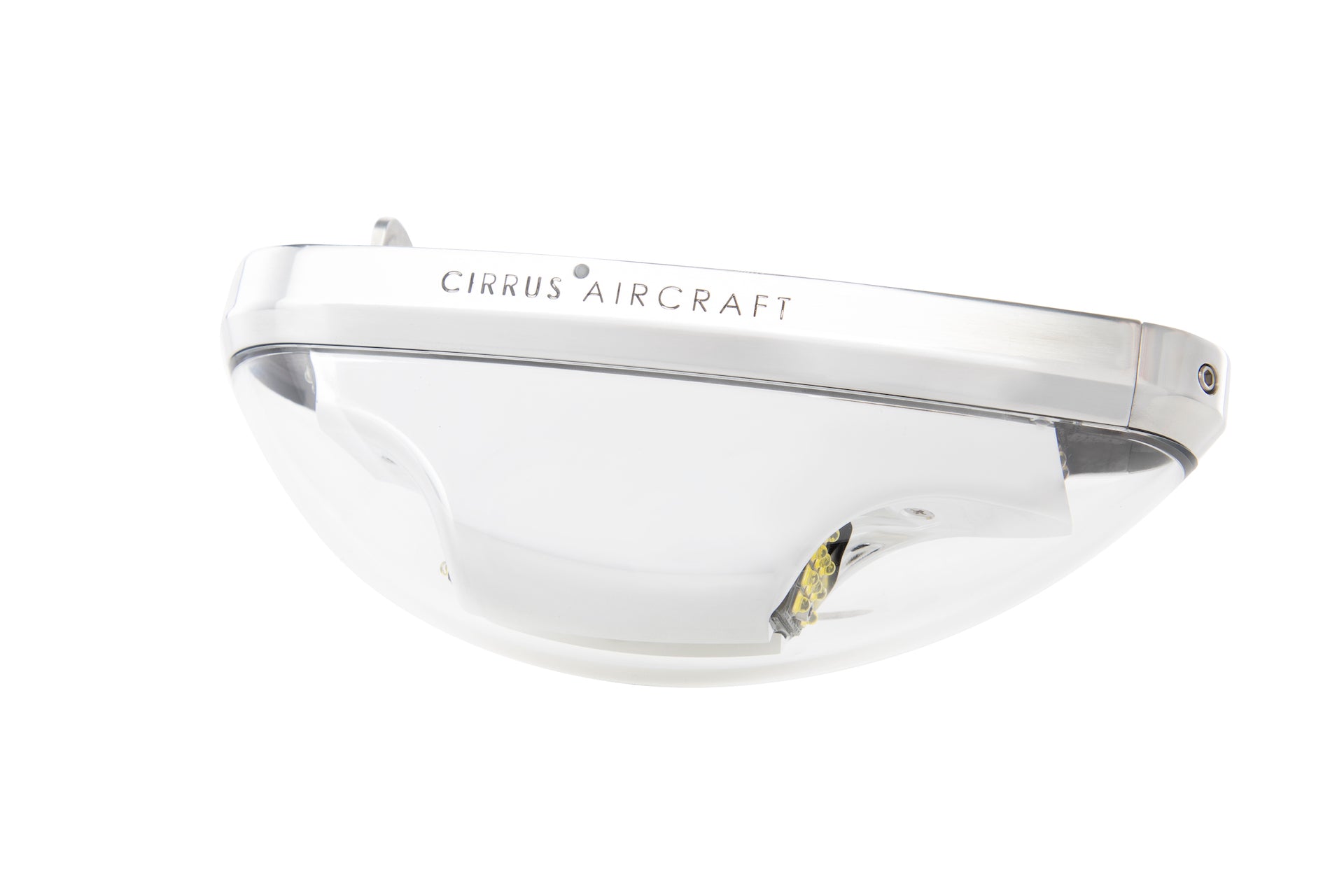

Orion™ 600 Series Forward & Tail/Anti-Collision Wingtip Light - Cirrus Aircraft Specific
Orion™ 600 Series Forward & Tail/Anti-Collision Wingtip Light - Cirrus Aircraft Specific

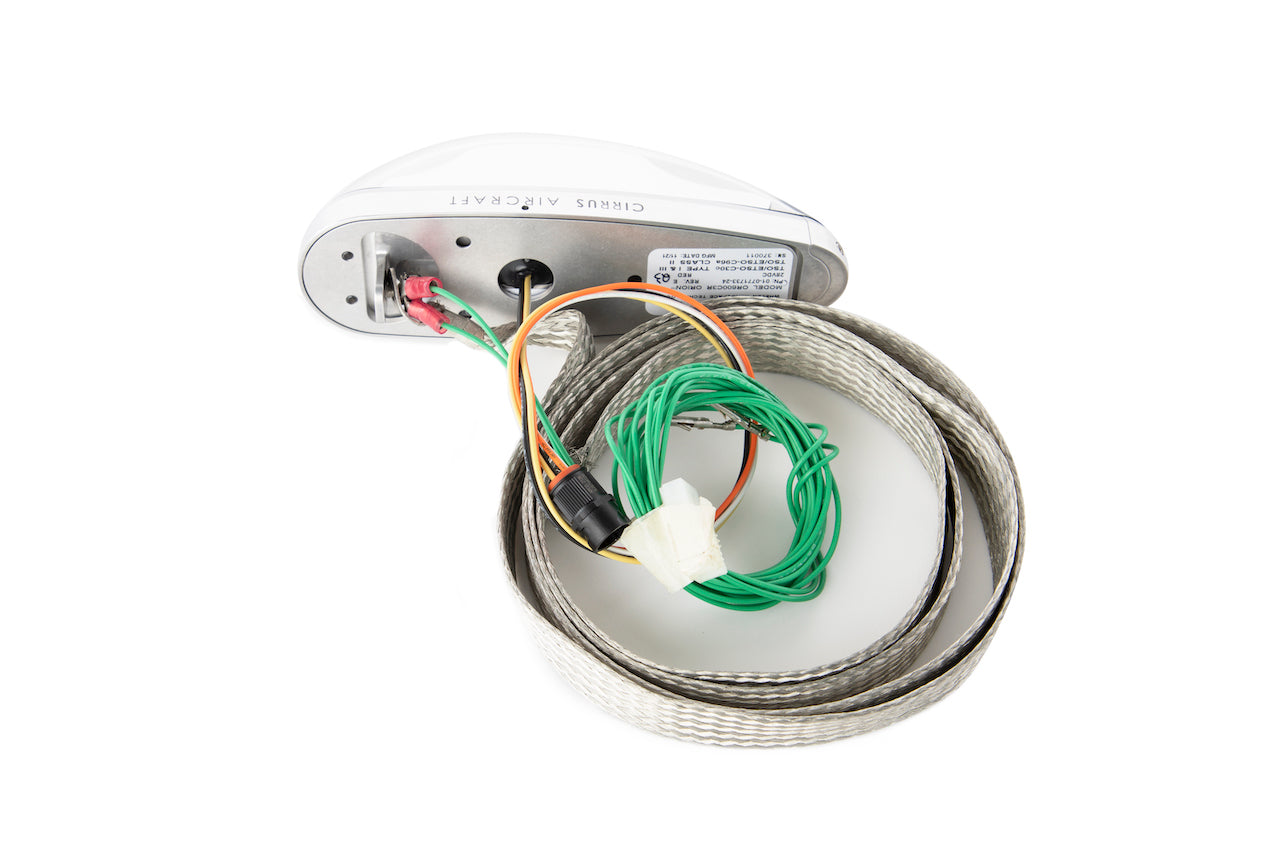

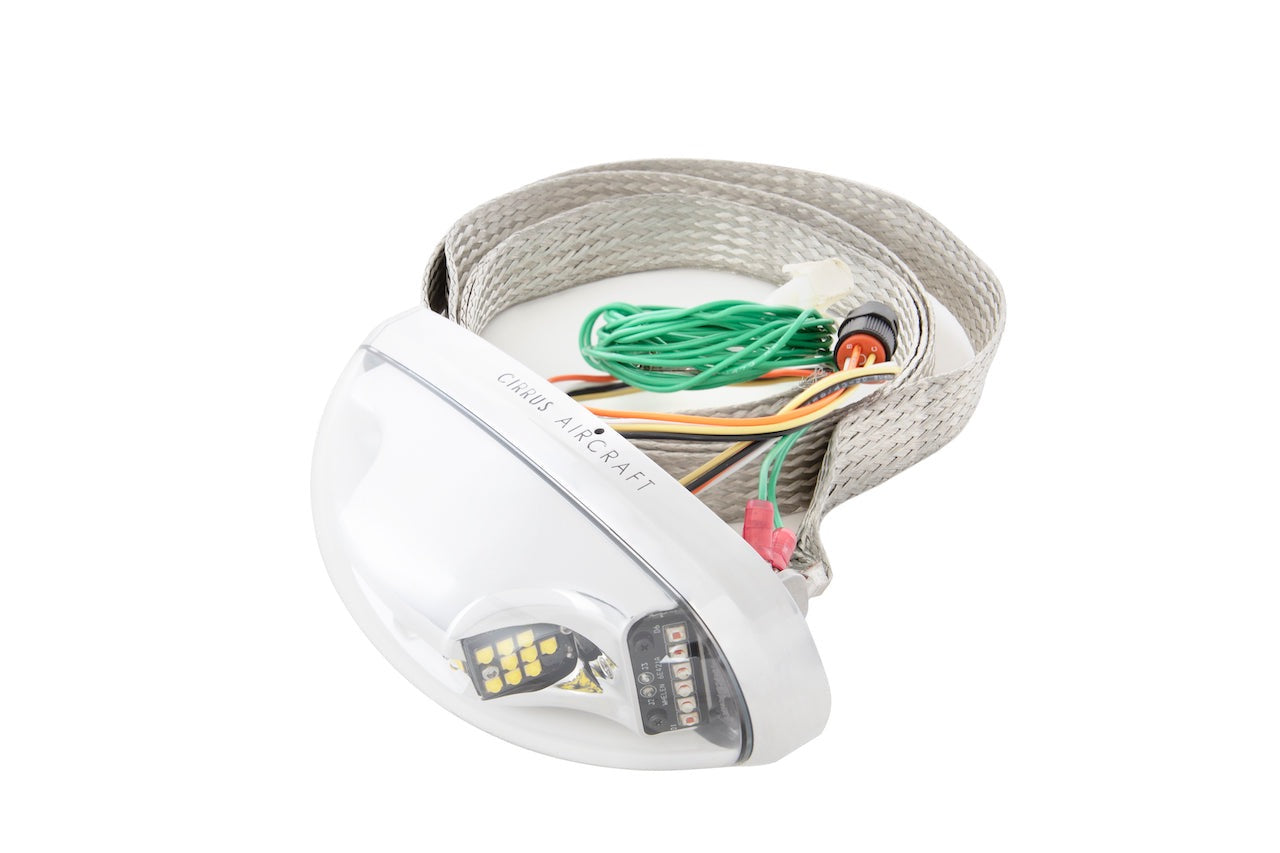

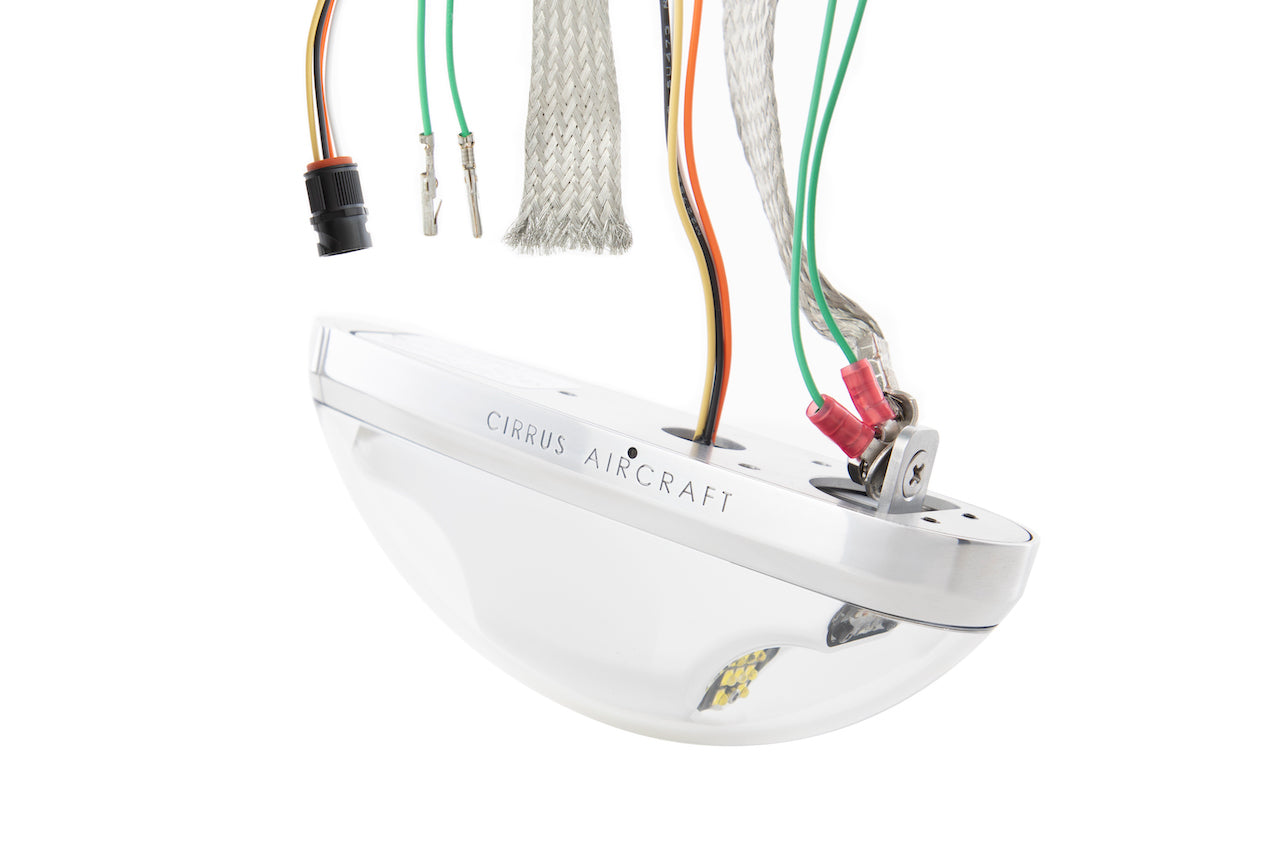

The Cirrus specific Orion 600 products are identical in functionality and approvals as the rest of the Orion 600 family with the addition of the same lighting protection features incorporated on the legacy Whelen products it is designed to replace. In addition, the Cirrus kits include the necessary wire/cable adapter harnesses to allow a seamless installation with minimal time and effort. 3 hole mount and 4 hole mount kits to retrofit all Whelen legacy wingtip lights. Available exclusively through Cirrus Direct, and all Cirrus authorized service centers.
Purchase Thru Cirrus Direct
Tech Specs
- Drawing # 71733
- Weight 0.5 lbs.
- Dimensions H x W x L 2.04 (52mm) x 1.78 (45mm) x 5.65 (144mm)
- Current Draw 14V / 28V 0.48 / 0.17 Amps Position 1.0 / 0.5 Amps Avg. ACL
- Position Led Colors Aviation Red, Aviation Green, Aviation White
- Anti-Collision LED color Aviation White
- Lenses Clear Polycarbonate Hard-coated, Field Replaceable
WAT ORION™ PART NUMBER | CIRRUS KIT PART NUMBER | DESCRIPTION |
01-0771733-23 (GREEN) 01-0771733-24 (RED) |
70702-002 |
4- hole Mount kit with associated installation harnesses Reference Cirrus Service Bulletin #SB2X-33-09
|
01-0771733-25 (GREEN) 01-0771733-26 (RED) |
70702-001 |
3-hole Mount kit with associated installation harness Reference Cirrus Service Bulletin #SB2X-33-08 |
Documents
Video
Cross Reference
Legacy Product Part Number | Orion™ 600 Part Number |
01-0790569-05 | 01-0771733-24 |
01-0790569-06 | 01-0771733-23 |
01-0790006-24 | 01-0771733-25 |
01-0790006-25 | 01-0771733-26 |
01-0790375-01 | 01-0771733-25 |
01-0790375-02 | 01-0771733-26 |
