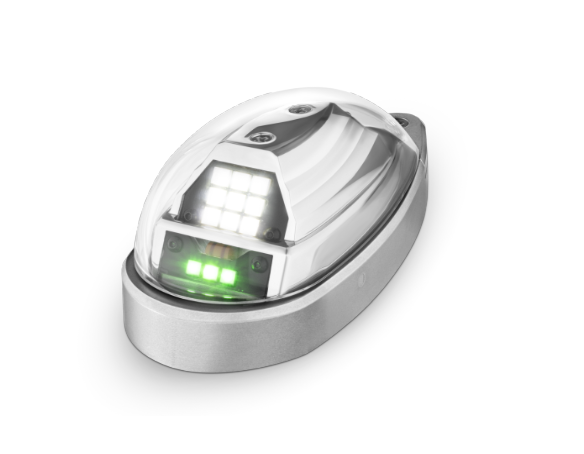

Product image 1![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](//flywat.com/cdn/shop/files/Screenshot2024-06-25at1.39.54PM_24x24_crop_center.png?v=1719337411)
![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](http://flywat.com/cdn/shop/files/Screenshot2024-06-25at1.39.54PM_92x92_crop_center.png?v=1719337411)

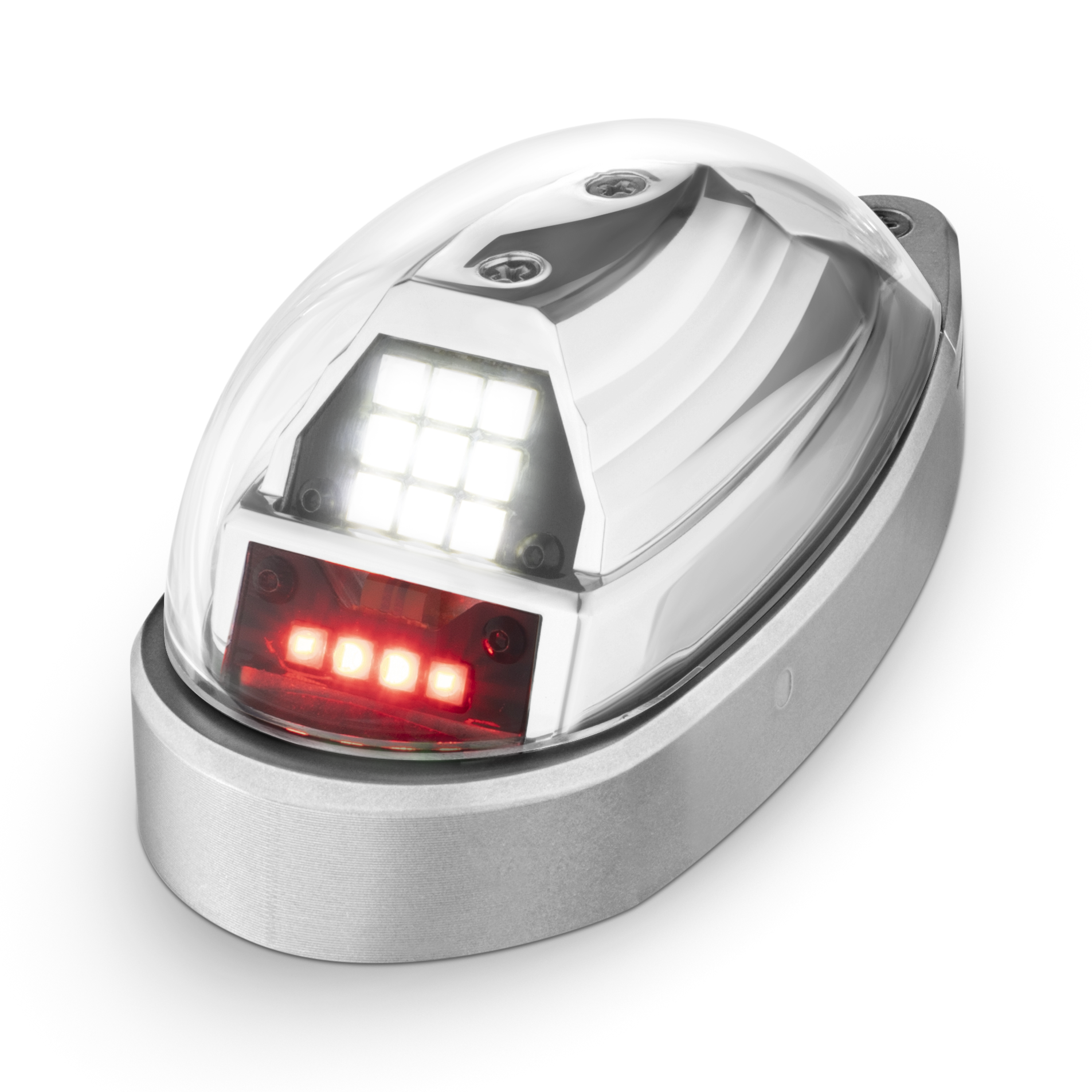

Product image 2![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](//flywat.com/cdn/shop/files/Orion650Red-01-0790725-02-fronttop45copy_24x24_crop_center.png?v=1719337411)
![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](http://flywat.com/cdn/shop/files/Orion650Red-01-0790725-02-fronttop45copy_92x92_crop_center.png?v=1719337411)
Product image 3![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](//flywat.com/cdn/shop/files/Orion650Red-01-0790725-02-side_24x24_crop_center.jpg?v=1719337411)
![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](http://flywat.com/cdn/shop/files/Orion650Red-01-0790725-02-side_92x92_crop_center.jpg?v=1719337411)

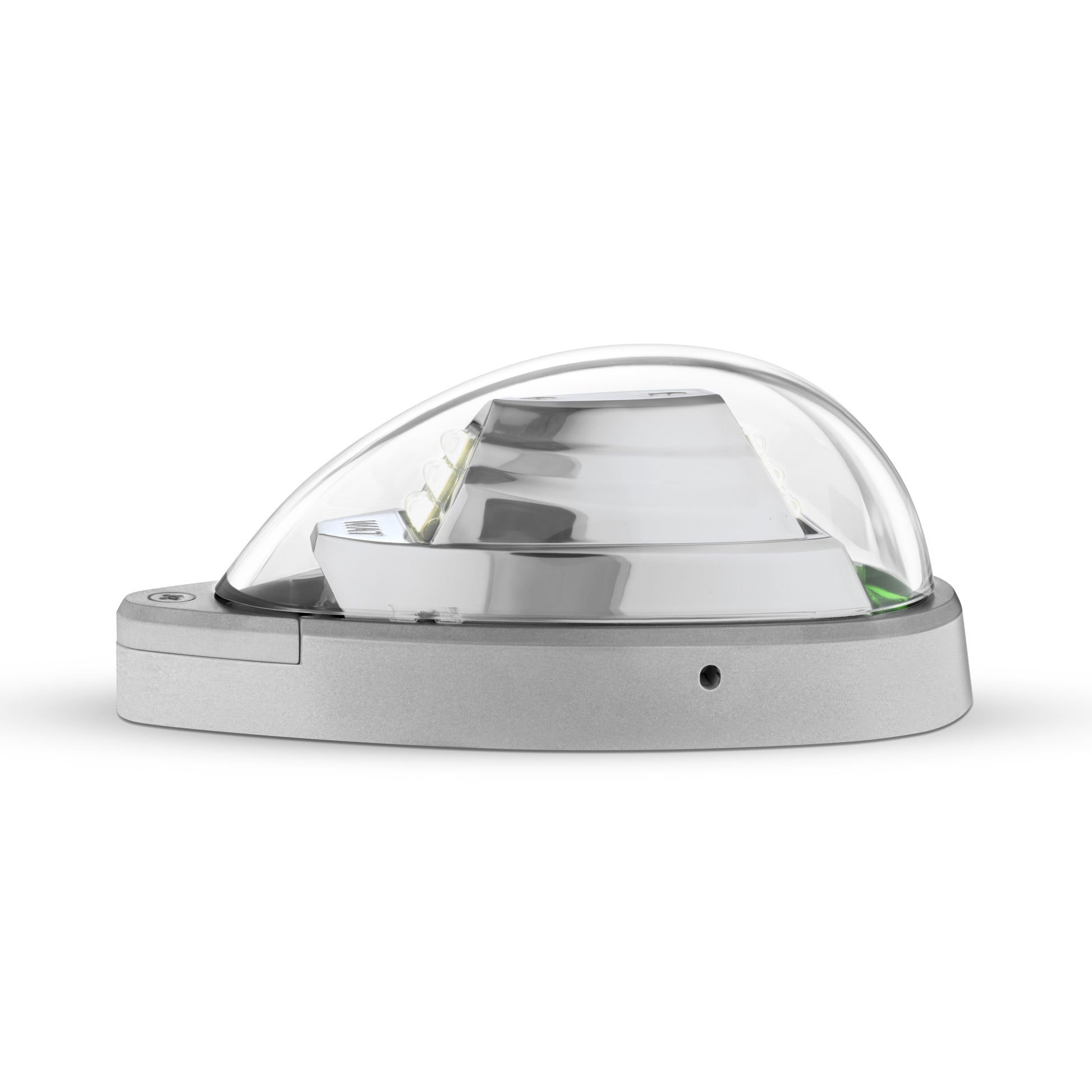

Product image 4![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](//flywat.com/cdn/shop/files/Orion650Green-01-0790725-01-side_24x24_crop_center.jpg?v=1719337411)
![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](http://flywat.com/cdn/shop/files/Orion650Green-01-0790725-01-side_92x92_crop_center.jpg?v=1719337411)
Product image 5![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](//flywat.com/cdn/shop/products/wat-eaa2022-5666_24x24_crop_center.jpg?v=1719337411)
![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](http://flywat.com/cdn/shop/products/wat-eaa2022-5666_92x92_crop_center.jpg?v=1719337411)

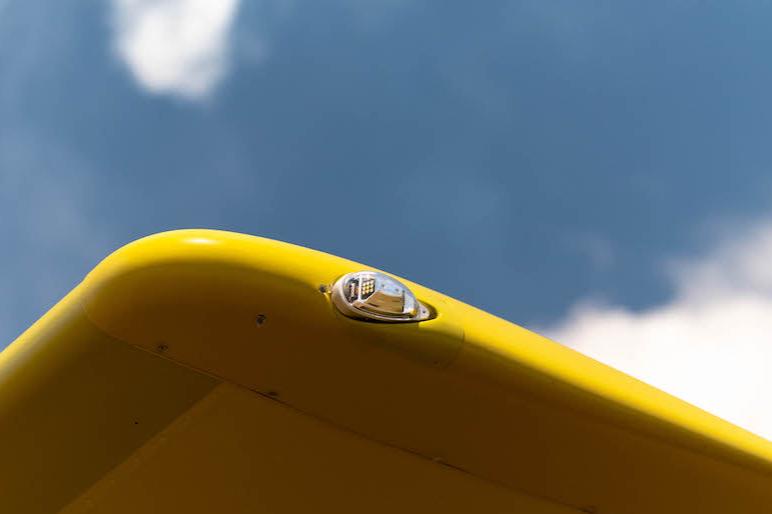

Product image 6![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](//flywat.com/cdn/shop/files/NZ63070_1_24x24_crop_center.jpg?v=1719337411)
![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](http://flywat.com/cdn/shop/files/NZ63070_1_92x92_crop_center.jpg?v=1719337411)
Product image 7![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](//flywat.com/cdn/shop/products/3D0A0695_24x24_crop_center.jpg?v=1719337411)
![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](http://flywat.com/cdn/shop/products/3D0A0695_92x92_crop_center.jpg?v=1719337411)

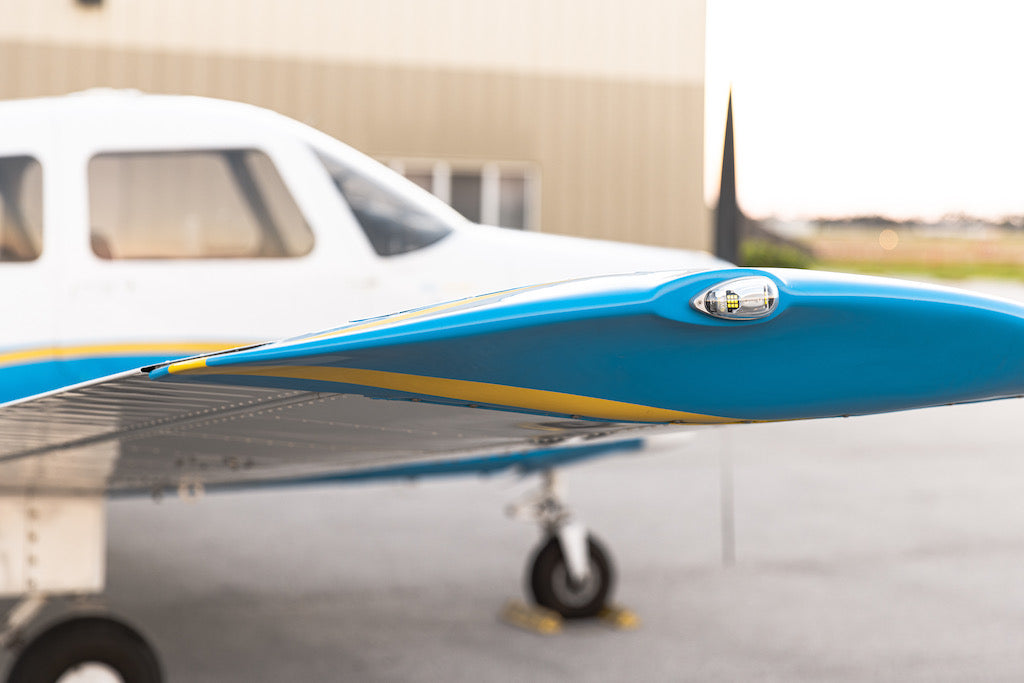

Product image 8![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](//flywat.com/cdn/shop/products/piper-1_24x24_crop_center.jpg?v=1719337411)
![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](http://flywat.com/cdn/shop/products/piper-1_92x92_crop_center.jpg?v=1719337411)
Product image 9![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](//flywat.com/cdn/shop/products/wat-eaa2022-0738_05923a42-965f-4ce4-a5f0-4953c4a08adb_24x24_crop_center.jpg?v=1719337411)
![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](http://flywat.com/cdn/shop/products/wat-eaa2022-0738_05923a42-965f-4ce4-a5f0-4953c4a08adb_92x92_crop_center.jpg?v=1719337411)
Product image 10![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](//flywat.com/cdn/shop/products/wat-eaa2022-5691_24x24_crop_center.jpg?v=1719337411)
![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](http://flywat.com/cdn/shop/products/wat-eaa2022-5691_92x92_crop_center.jpg?v=1719337411)
Product image 11![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](//flywat.com/cdn/shop/products/3D0A0692_24x24_crop_center.jpg?v=1719337411)
![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](http://flywat.com/cdn/shop/products/3D0A0692_92x92_crop_center.jpg?v=1719337411)
Product image 12![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](//flywat.com/cdn/shop/products/3D0A0689_24x24_crop_center.jpg?v=1719337411)
![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](http://flywat.com/cdn/shop/products/3D0A0689_92x92_crop_center.jpg?v=1719337411)
Product image 13![ORION 650 Series Forward Position Wingtip Lights](//flywat.com/cdn/shop/products/IMG_1135_clipped_rev_1_24x24_crop_center.png?v=1719337411)
![ORION 650 Series Forward Position Wingtip Lights](http://flywat.com/cdn/shop/products/IMG_1135_clipped_rev_1_92x92_crop_center.png?v=1719337411)

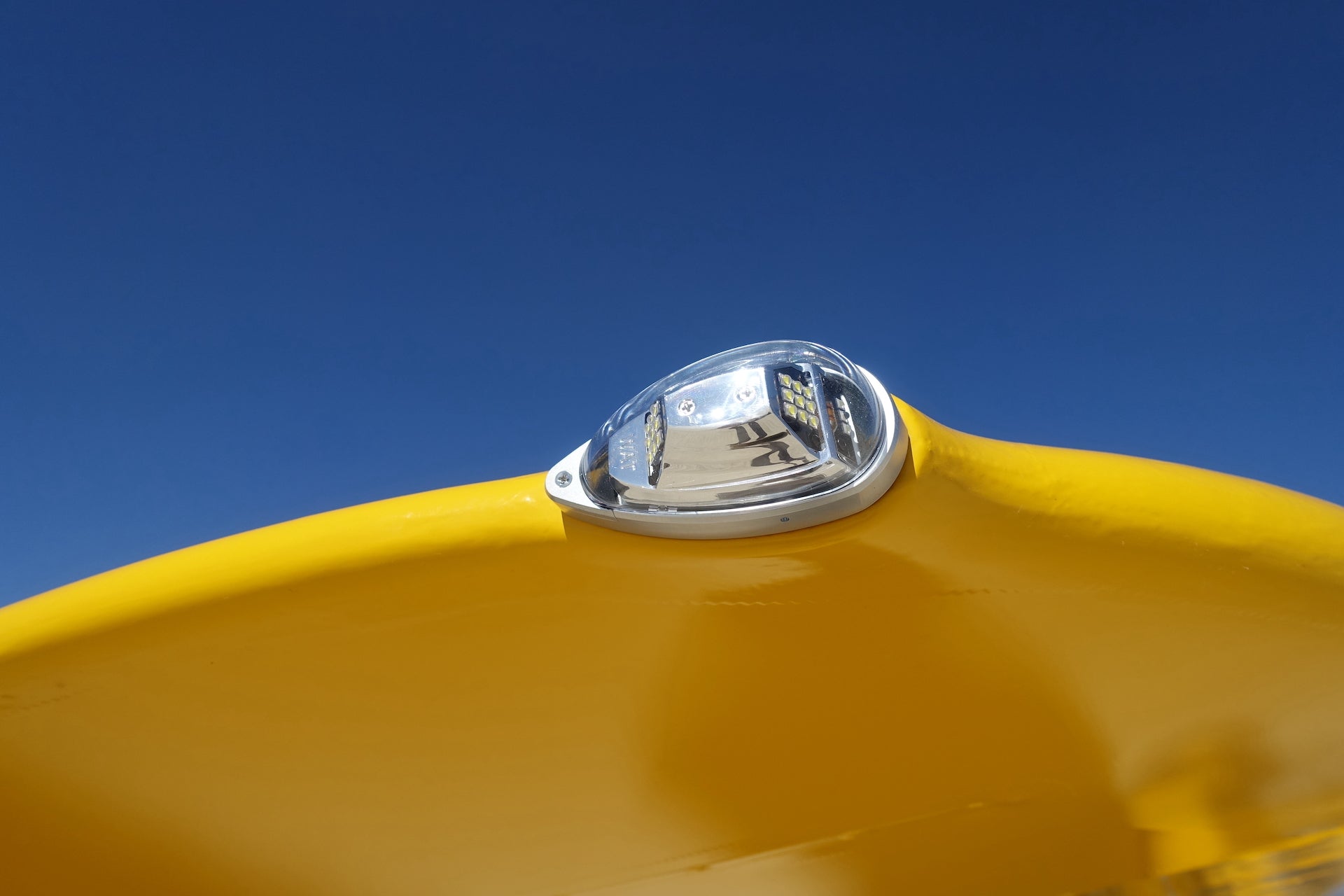

Product image 14![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](//flywat.com/cdn/shop/products/DSC01371_24x24_crop_center.jpg?v=1719337411)
![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](http://flywat.com/cdn/shop/products/DSC01371_92x92_crop_center.jpg?v=1719337411)

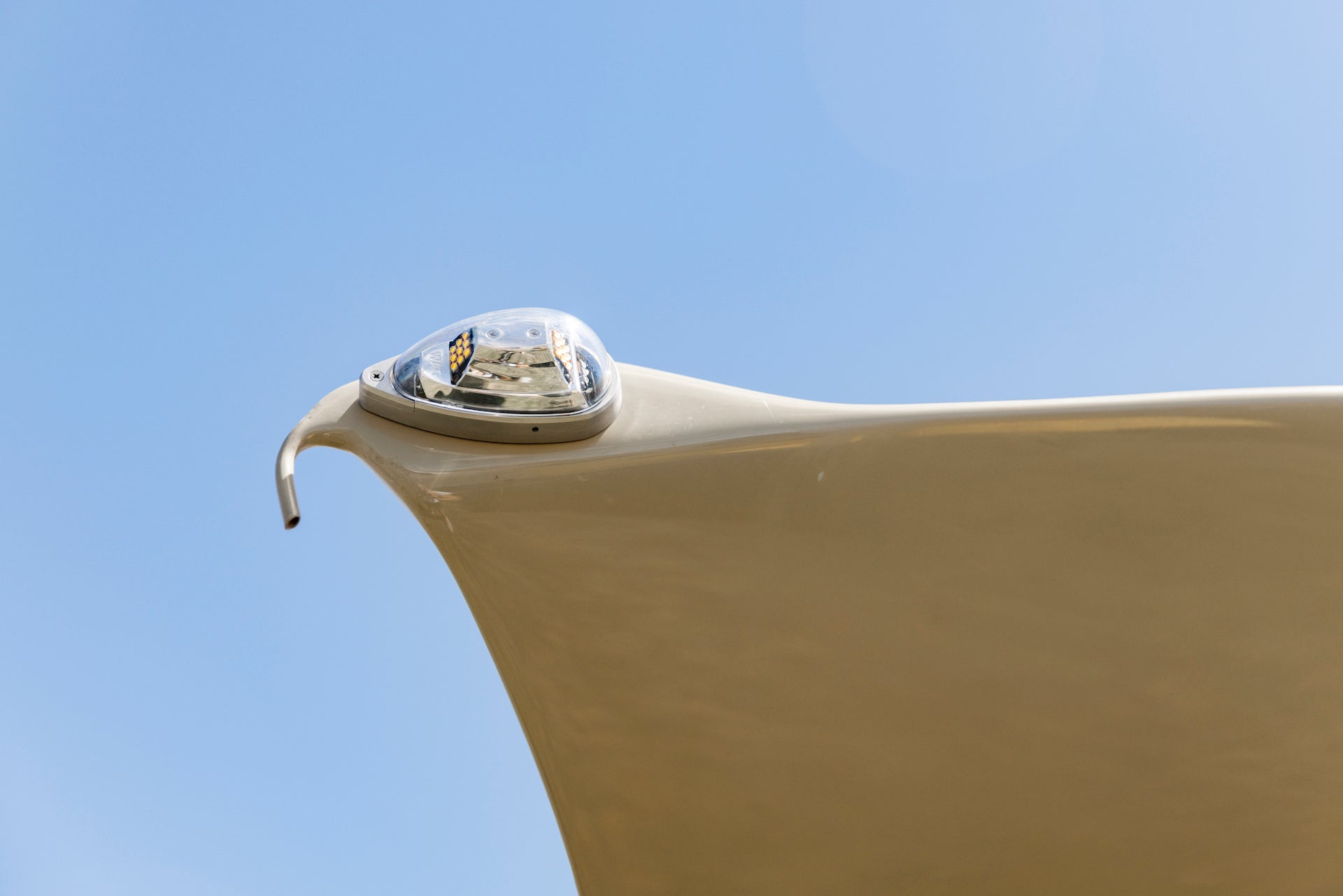

Product image 15![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](//flywat.com/cdn/shop/products/wat-eaa2022-0723_2a877ab3-d673-411e-8a5b-597cd6a8bea7_24x24_crop_center.jpg?v=1719337411)
![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](http://flywat.com/cdn/shop/products/wat-eaa2022-0723_2a877ab3-d673-411e-8a5b-597cd6a8bea7_92x92_crop_center.jpg?v=1719337411)
Product image 16![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](//flywat.com/cdn/shop/products/3D0A0808_24x24_crop_center.jpg?v=1719337411)
![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](http://flywat.com/cdn/shop/products/3D0A0808_92x92_crop_center.jpg?v=1719337411)
Product image 17![ORION 650 Series Wingtip Lights](//flywat.com/cdn/shop/products/IMG_1386copy_24x24_crop_center.jpg?v=1719337411)
![ORION 650 Series Wingtip Lights](http://flywat.com/cdn/shop/products/IMG_1386copy_92x92_crop_center.jpg?v=1719337411)

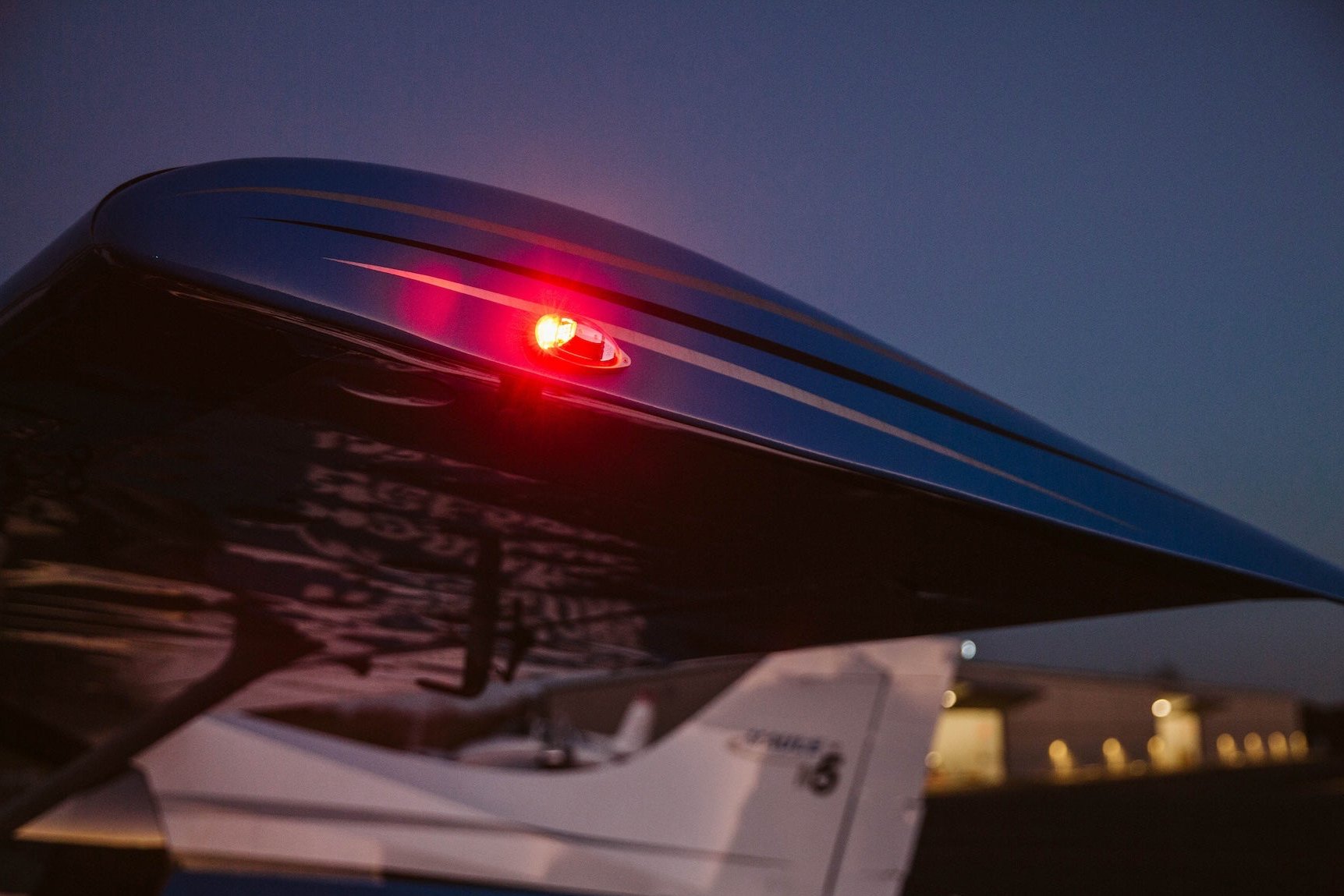

Product image 18![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](//flywat.com/cdn/shop/products/3D0A0807_24x24_crop_center.jpg?v=1719337411)
![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](http://flywat.com/cdn/shop/products/3D0A0807_92x92_crop_center.jpg?v=1719337411)
Product image 19![ORION 650 Series Wingtip Lights Closeup](//flywat.com/cdn/shop/products/IMG_1354copy2_24x24_crop_center.jpg?v=1719337411)
![ORION 650 Series Wingtip Lights Closeup](http://flywat.com/cdn/shop/products/IMG_1354copy2_92x92_crop_center.jpg?v=1719337411)
Product image 20![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](//flywat.com/cdn/shop/products/3D0A0694_24x24_crop_center.jpg?v=1719337411)
![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](http://flywat.com/cdn/shop/products/3D0A0694_92x92_crop_center.jpg?v=1719337411)
Product image 21![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](//flywat.com/cdn/shop/products/wat-eaa2022-6237_24x24_crop_center.jpg?v=1719337411)
![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](http://flywat.com/cdn/shop/products/wat-eaa2022-6237_92x92_crop_center.jpg?v=1719337411)
Product image 22![ORION 650 Series Wingtip Lights Green Installed](//flywat.com/cdn/shop/products/bonanza-print-23copy_24x24_crop_center.jpg?v=1719337411)
![ORION 650 Series Wingtip Lights Green Installed](http://flywat.com/cdn/shop/products/bonanza-print-23copy_92x92_crop_center.jpg?v=1719337411)
Product image 23![ORION 650 Series Wingtip Lights Red Installed](//flywat.com/cdn/shop/products/bonanza-print-24copy_24x24_crop_center.jpg?v=1719337411)
![ORION 650 Series Wingtip Lights Red Installed](http://flywat.com/cdn/shop/products/bonanza-print-24copy_92x92_crop_center.jpg?v=1719337411)
Product image 24![ORION 650 Series Wingtip Lights In Action](//flywat.com/cdn/shop/products/bonanza-print-28copy_24x24_crop_center.jpg?v=1719337411)
![ORION 650 Series Wingtip Lights In Action](http://flywat.com/cdn/shop/products/bonanza-print-28copy_92x92_crop_center.jpg?v=1719337411)
Product image 25![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](//flywat.com/cdn/shop/products/3D0A0810_24x24_crop_center.jpg?v=1719337411)
![ORION 650 Series Forward Position / Anti-Collision Wingtip Lights](http://flywat.com/cdn/shop/products/3D0A0810_92x92_crop_center.jpg?v=1719337411)
The Orion 650 series products feature Forward Position Lights in either RED or GREEN, accompanied by a WHITE flashing Anti-Collision Light function. These products are equipped with cutting-edge LED circuitry, eliminating the necessity for separate flasher boxes. The footprint and mounting specifications are identical to legacy Whelen products, ensuring effortless installation and retrofitting. They have obtained full FAA/TSO & STC approval, guaranteeing compliance with aviation standards.
The Orion 650 series products feature Forward Position Lights in either RED or GREEN, accompanied by a WHITE flashing Anti-Collision Light function. These products are equipped with cutting-edge LED circuitry, eliminating the necessity for separate flasher boxes. The footprint and mounting specifications are identical to legacy Whelen products, ensuring effortless installation and retrofitting. They have obtained full FAA/TSO & STC approval, guaranteeing compliance with aviation standards.
Orion 650 Airplane Wingtip Lights
Tech Specs
- Drawing 90725
- Weight 0.26 lbs
- Current Draw 14V / 28V 0.30 / 0.15 Amps Position 0.70 / 0.35 Amps Avg. ACL
- Lenses Clear Hardcoated Polycarbonate Lens Part # 01-0251094-01
Model | Part # | Description | Approvals | |
OR6501G | 01-0790725-01 |
Green
Position Light / Anti-Collision Light Wingtip Assembly, 14 VDC
|
FAA TSO-C96a Class III / TSO-C30c Type II | |
OR6501R | 01-0790725-02 |
Red
Position Light / Anti-Collision Light Wingtip Assembly, 14 VDC
|
FAA TSO-C96a Class III / TSO-C30c Type I | |
OR6502G | 01-0790725-11 |
Green
Position Light / Anti-Collision Light Wingtip Assembly, 28 VDC
|
FAA TSO-C96a Class III / TSO-C30c Type II | |
OR6502R | 01-0790725-12 |
Red
Position Light / Anti-Collision Light Wingtip Assembly, 28 VDC
|
FAA TSO-C96a Class III / TSO-C30c Type I |
Documents
- STC - OR650 - STC SA800EA
- EASA STC - 10055068 Fixed Wing
- EASA STC - 10056206 Rotorcraft
- Brazilian STC - Formulario F 400 01G 0806731
- Install Guide: 14719 - OR650 - 28V
- Install Guide: 14718 - OR650- 14V
- Installation & Service Manual - Document #05131 Rev. E
Cross Reference
Legacy Product Part Number | Legacy Product Model Number | Orion™ 650 Part Number | Orion™ 650 Model Number |
01-0770054-01 | A650PG28 | 01-0790725-11 | OR6502G |
01-0770054-03 | A650PR28 | 01-0790725-12 | OR6502R |
01-0770054-00 | A650PG14 |
01-0790725-01 | OR6501G |
01-0770054-02 | A650PR14 | 01-0790725-02 |
OR6501R |
01-0771110-03 | 7111003 | 01-0790725-12 | OR6502R |
01-0771110-04 | 7111004 |
01-0790725-11 |
OR6502G |
01-0771110-01 | 7111001 | 01-0790725-02 | OR6501R |
01-0771110-02 | 7111002 | 01-0790725-01 | OR6501G |
01-0770001-42 | W1285PG28 | 01-0790725-11 | OR6502G |
01-0770001-52 | W1285PR28 | 01-0790725-12 | OR6502R |
01-0770001-41 | W128514 | 01-0790725-01 | OR6501G |
01-0770001-51 | W128514 | 01-0790725-02 | OR6501R |
01-0771105-03 | 7110503 | 01-0790725-12 | OR6502R |
01-0771105-04 | 7110504 | 01-0790725-11 | OR6502G |
01-0771105-01 | 7110501 | 01-0790725-02 | OR6501R |
01-0771105-02 | 7110502 | 01-0790725-01 | OR6501R |
NOTE: Any highlighted RED ITEMS will require extra wiring for anti-collision function of Orion™ Series.
