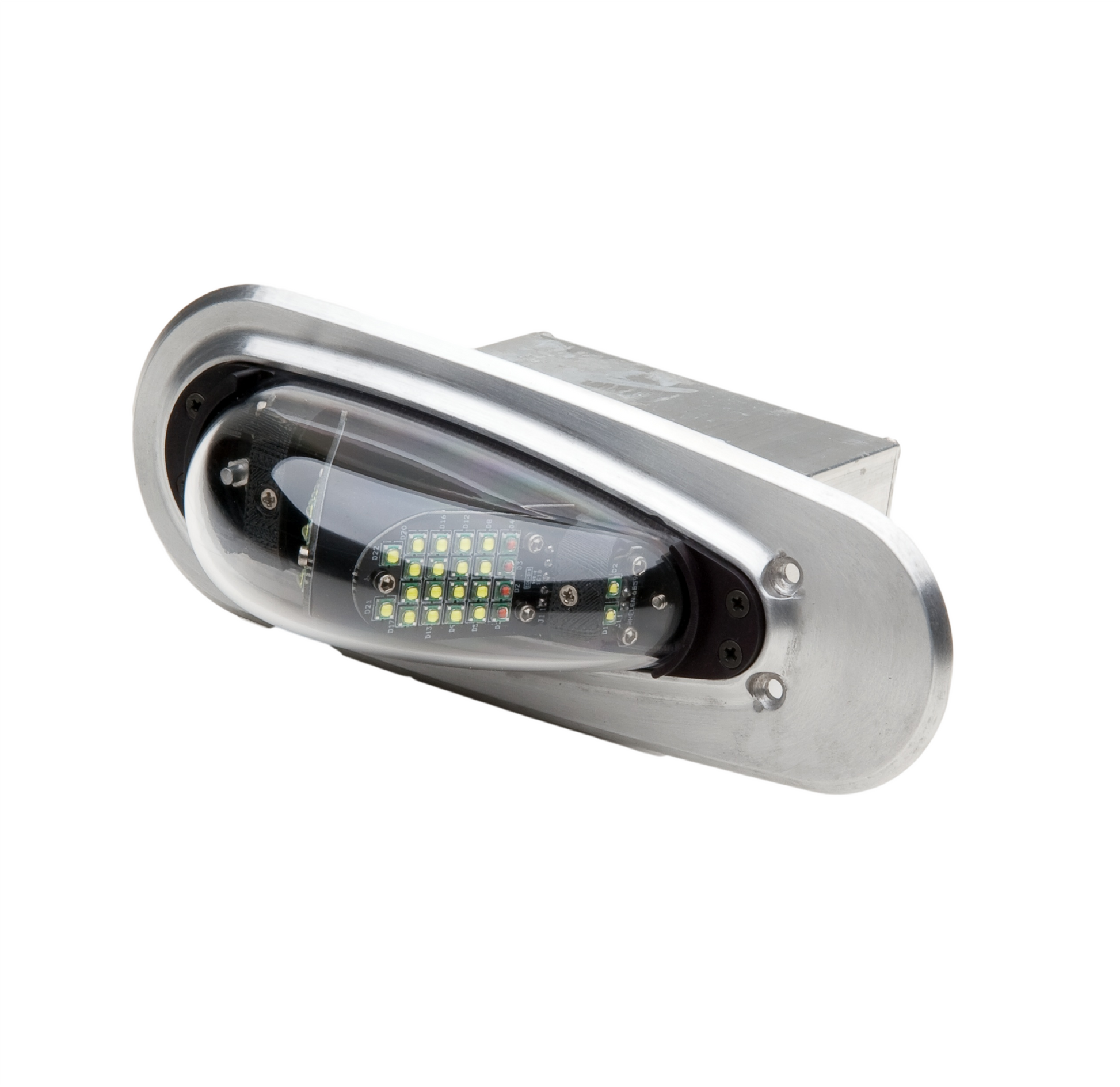

90613 Series LED Position & Anti Collision Light

Product image 190613 Series LED  Position & Anti Collision Light
Product image 290613 Series LED  Position & Anti Collision Light
Product image 390613 Series LED  Position & Anti Collision Light
Product image 490613 Series LED  Position & Anti Collision Light

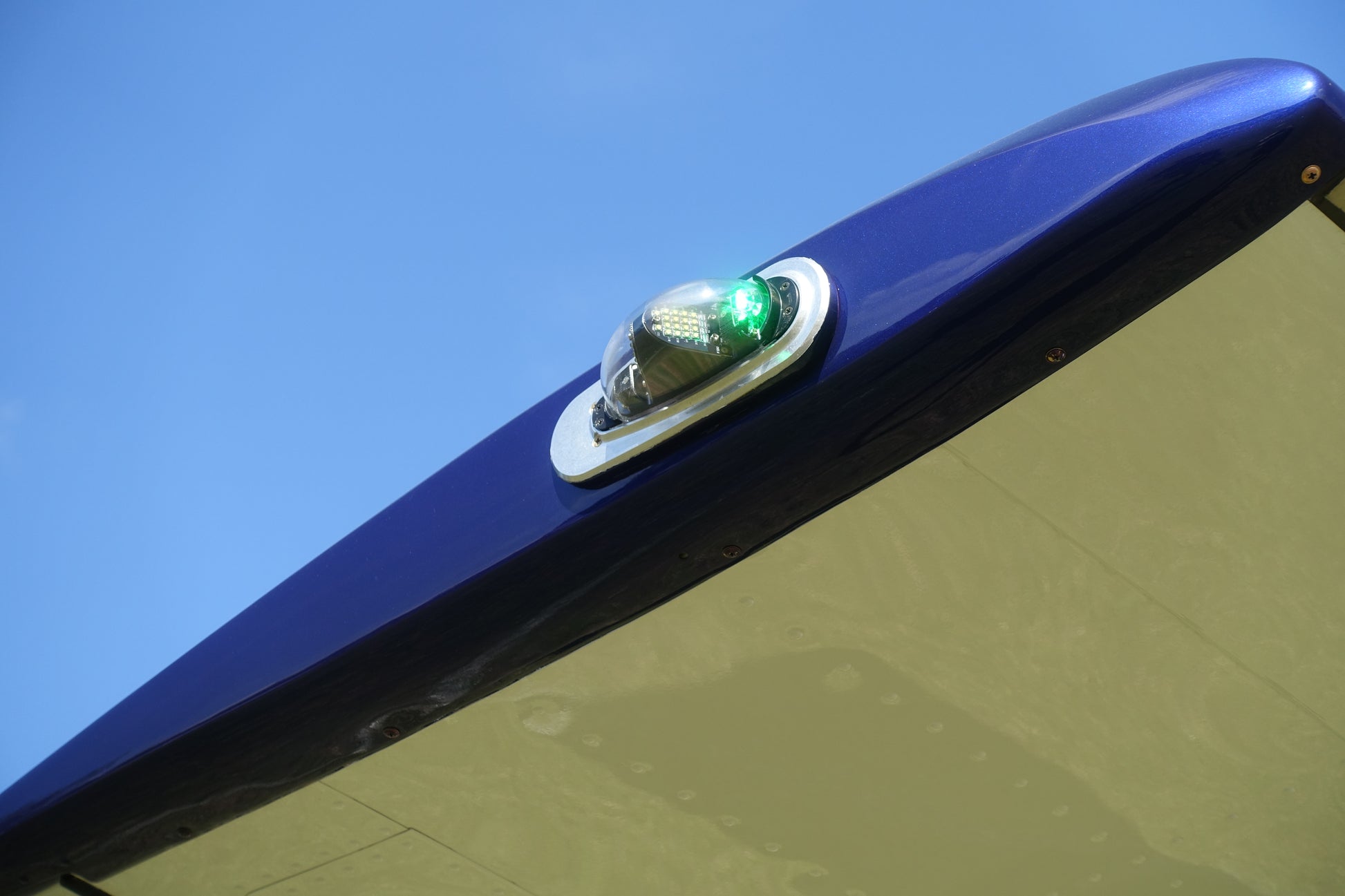

90613 Series is a self contained, all LED forward and aft position light with a white anti-collision light.  These assemblies interconnect with standard Amp Mate-N-Lock connectors. 90613 assemblies have the same hole pattern of the original Cessna Caravan light.  These assemblies currently are TSO approved and STC Approved for the Caravan.
Tech Specs
  • Drawing: 90613
  • Current: Position Light: 0.23 Amps ACL Light 0.73 AMPS Average
  • Weight: 0.88 Lbs.
  • Lens: Polycarbonate
  • Dimensions: 7.40" L x 2.63" W X 2.02" Exposed H
Model Part # Description Approvals
9061391 01-0790613-91 RH Green Wingtip position anti-collision LED

TSO Approved.    STC Approved - Caravan

9061392 01-0790613-92 LH Red Wingtip position anti-collision LED

TSO Approved.  STC  Approved - Caravan
