71080 Series Whelen LED Beacon Lights
71080 Series Whelen LED Beacon Lights

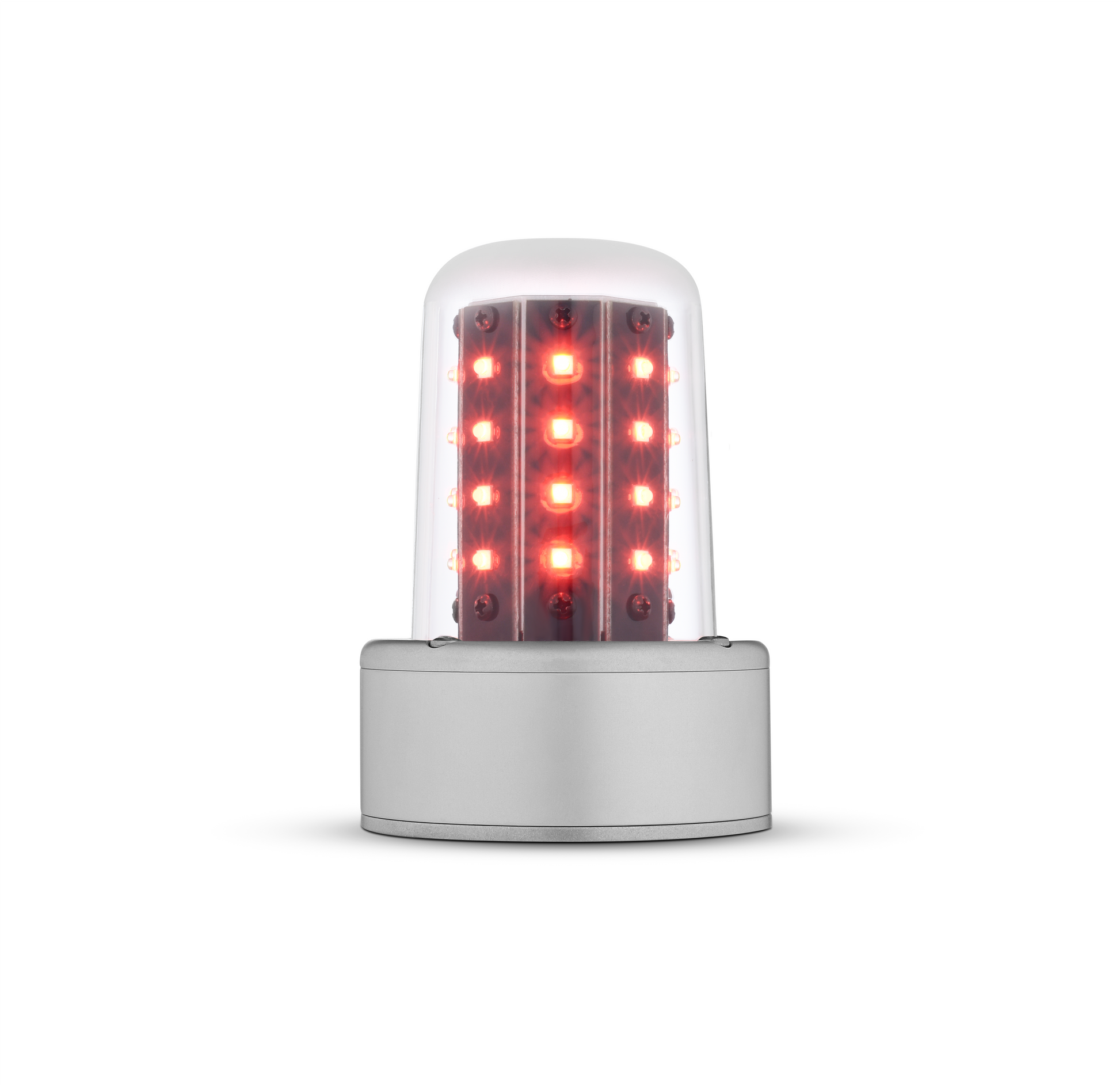

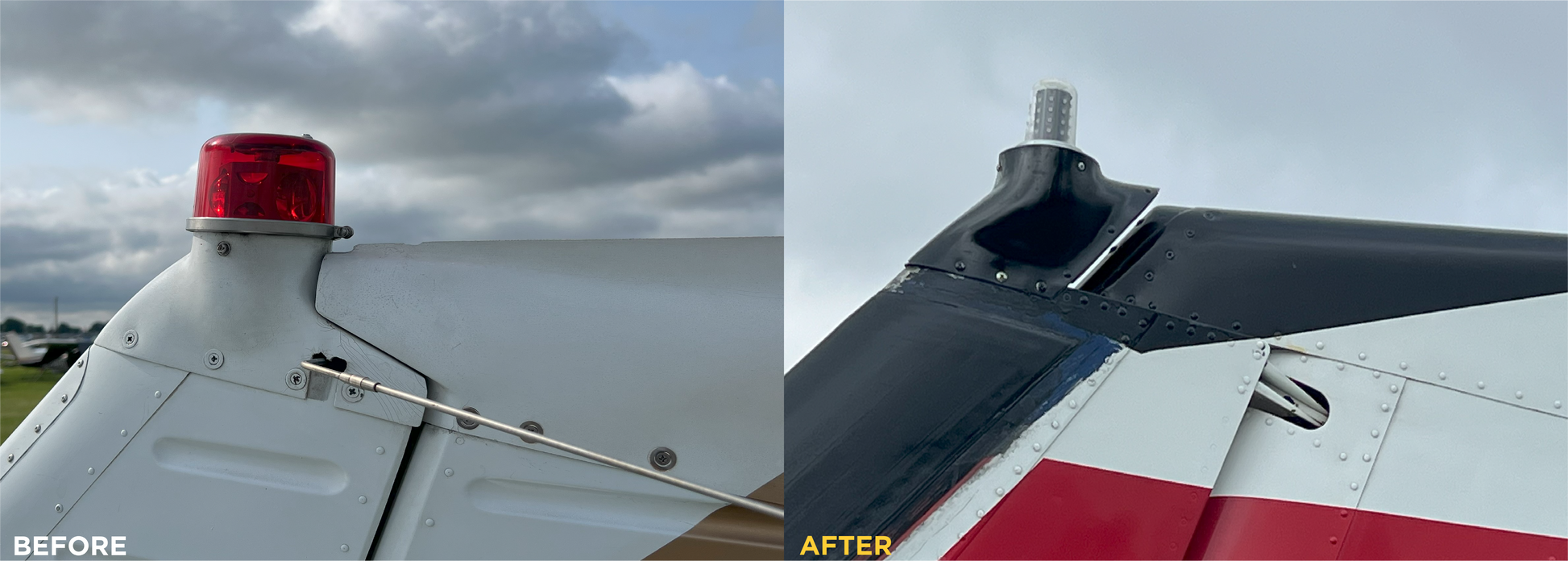

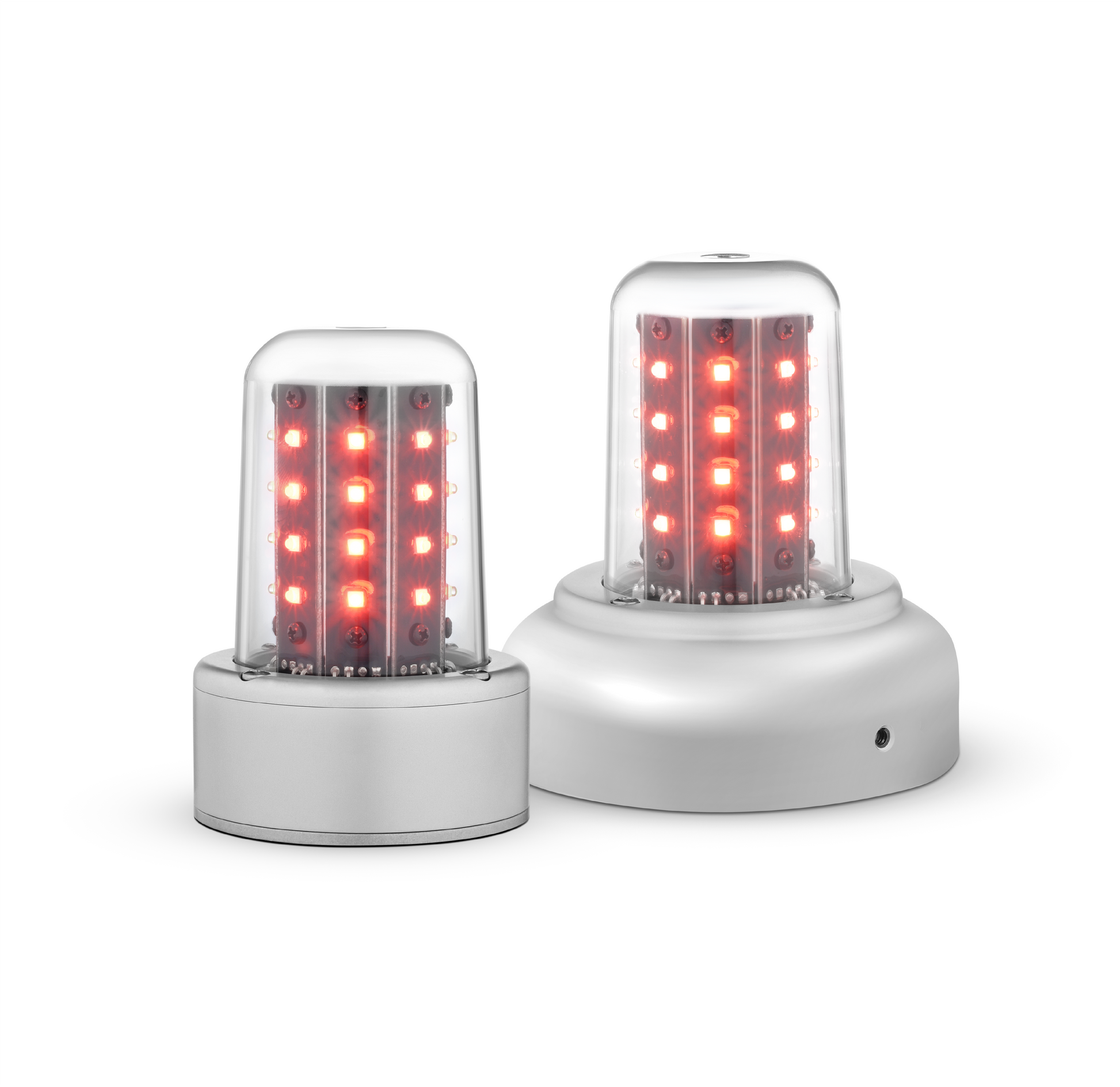

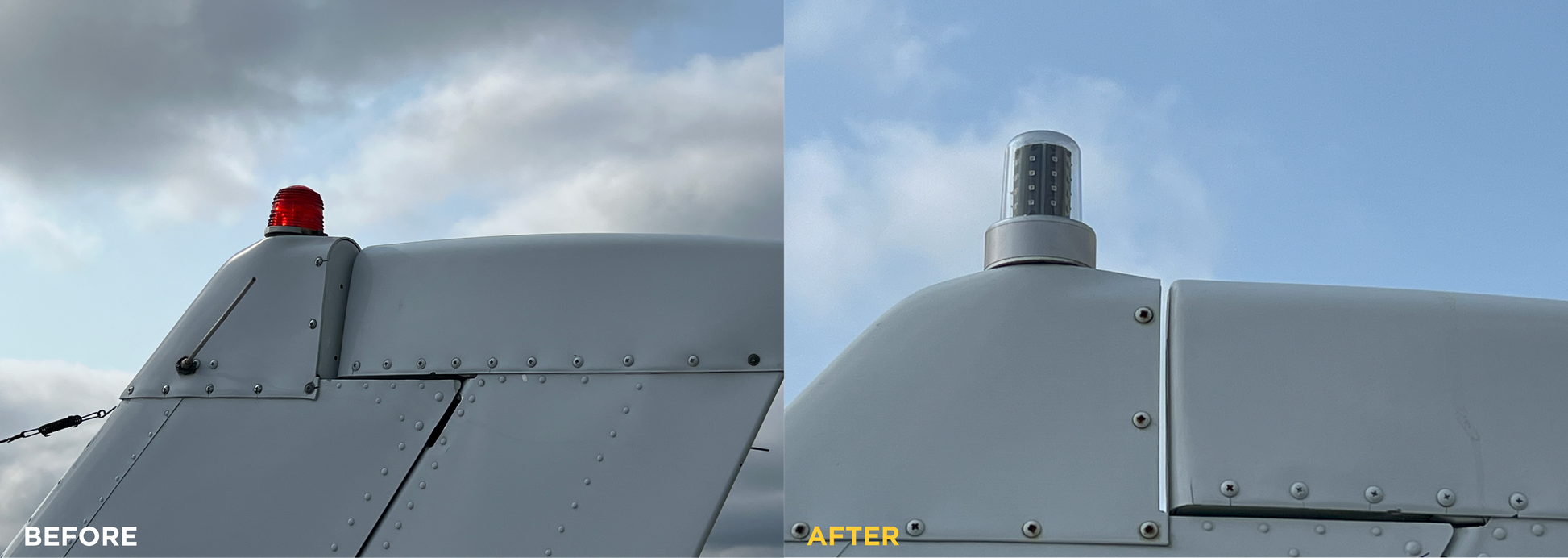

Model 71080 Series LED beacons are FAA TSO'd self-contained LED anti-collision lights (Ref. Class I - 150 effective candlepower). They are designed to replace existing beacons utilizing a 2-1/2 diameter footprint. They can also replace remote mounted strobe lights (ref. Whelen A470 series) allowing for removal of the strobe power supply. Internal mounting plate provided with choice of mounting holes to retrofit most existing mounting patterns.
Beacon Lights - 71080 Series
Tech Specs
- Weight:
- Narrow Base(2.6" Diameter mount): 0.65 lbs

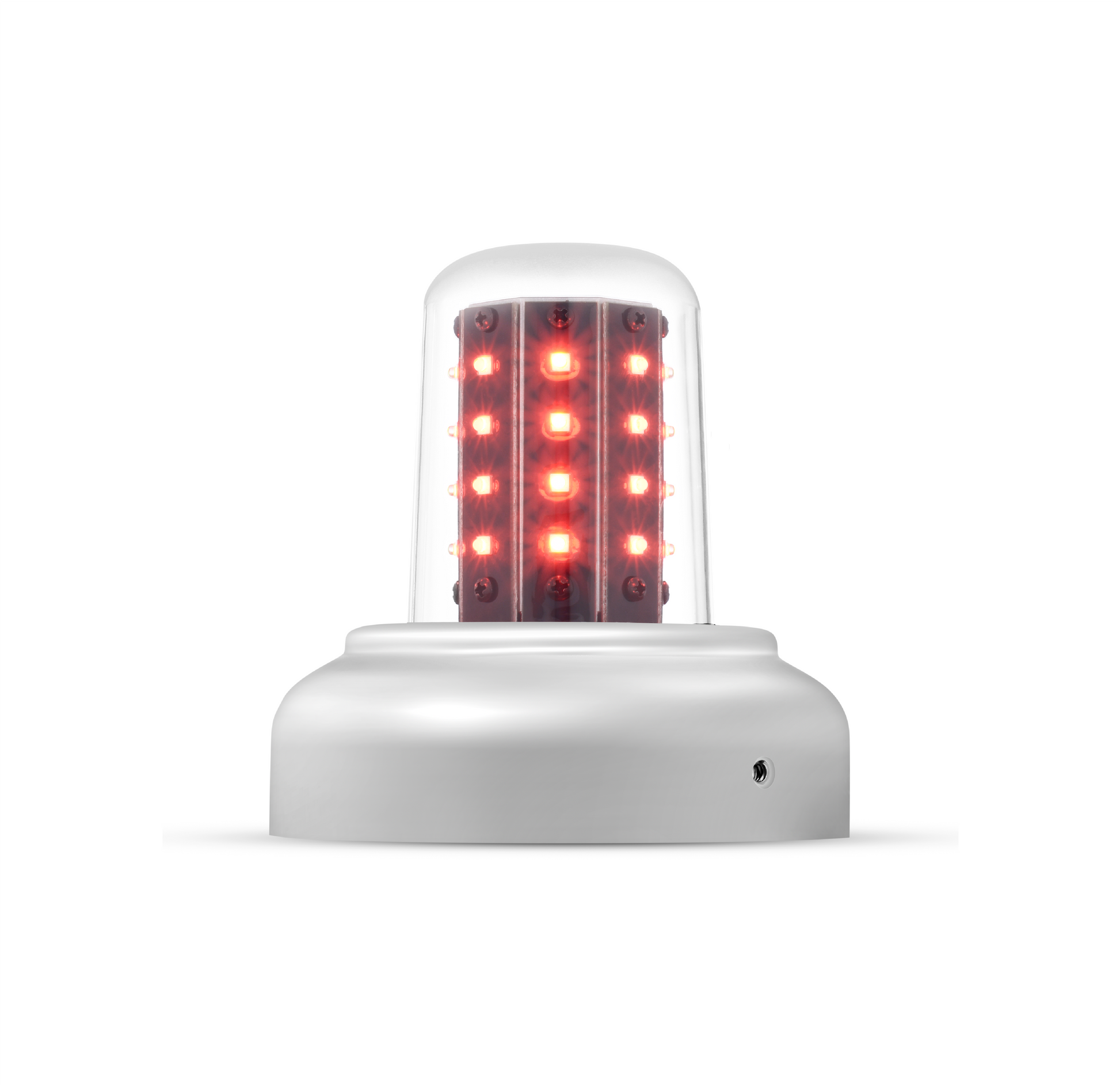

- Wide Base(3.75" Diameter Mount): 0.75 lbs
- Current Draw
- 14VDC: 0.90 Amps (Average) | 4.0 Amps (Peak)
- 28VDC: 0.45 Amps (Average) | 2.0 Amps (Peak)
- LED Color: Aviation RED
- Lens: Clear Hardcoated Polycarbonate
- Replacement Lens Part Number: 68-3990574A30
Certificate - STC SA615EA.pdf
| Model | Part # | Description | STC | Approvals |
| 7108001 | 01-0771080-01 | LED Beacon Red 28V (2.6" Diameter mount) | STC SA615EA.pdf | STC/TSO-C96a Class I(150 ecp) |
| 7108004 | 01-0771080-04 | LED Beacon Red, 28V (5HoleAdapt, FlyingLeads) | STC SA615EA.pdf | STC/ TSO-C96a Class I |
| 7108005 | 01-0771080-05 | LED Beacon Red, 28V (3.75" Diameter mount) | STC SA615EA.pdf | STC/ TSO-C96a Class I |
| 7108007 | 01-0771080-07 | LED Beacon Red, 28V (3.75"Adapt, MSConn, Upper) | STC SA615EA.pdf | STC/ TSO-C96a Class I |
| 7108008 | 01-0771080-08 | LED Beacon Red, 28V (5HoleAdapt, MSConn) | STC SA615EA.pdf | STC/ TSO-C96a Class I |
| 7108014 | 01-0771080-14 | LED Beacon Red, 28V (5HoleAdapt, Flying Leads, Lower) | STC SA615EA.pdf | STC/ TSO-C96a Class I |
| 7108015 | 01-0771080-15 | LED Beacon Red, 28V (3.75" Diameter mount, Lower) | STC SA615EA.pdf | STC/ TSO-C96a Class I |
| 7108017 | 01-0771080-17 | LED Beacon Red, 28V (3.75"Adapt, MSConn, Lower) | STC SA615EA.pdf | STC/ TSO-C96a Class I |
| 7108018 | 01-0771080-18 | LED Beacon Red, 28V (5HoleAdapt, MSConn, Lower) | STC SA615EA.pdf | STC/ TSO-C96a Class I |
| 7108020 | 01-0771080-20 | LED Beacon Red 28V (EC120,130,135Adapt) | STC SA615EA.pdf | STC/ TSO-C96a Class I |
| 7108051 | 01-0771080-51 | LED Beacon Red, 14V (2.6" Diameter mount) | STC SA615EA.pdf | STC/ TSO-C96a Class I |
| 7108055 | 01-0771080-55 | LED Beacon Red, 14VDC (3.75" Diameter Mount) | STC SA615EA.pdf | STC/TSO-C96a Class I(150 ecp) |
Documents
- STC - SA615EA
- EASA STC - 10052976 Fixed Wing
- EASA STC - 10053536 Rotorcraft
- Brazlian STC - Formulario F 400 01G 0808259
- Install Guide: 14315 - 7108055
- Install Guide: 14314 - 7108051
- Install Guide: 14313 - 7108020, 7108030
- Install Guide: 14312 - 7108008, 7108018
- Install Guide: 14311 - 7108007, 7108017
- Install Guide: 14310 - 7108005, 7108015
- Install Guide: 14309 - 7108004, 7108014
- Install Guide: 14163 - 7108013
- Install Guide: 14162 - 7108001, 7108006
- Install Guide: 14159 - 7108000, 7108050
- Installation & Service Manual - Document #05131 Rev. E

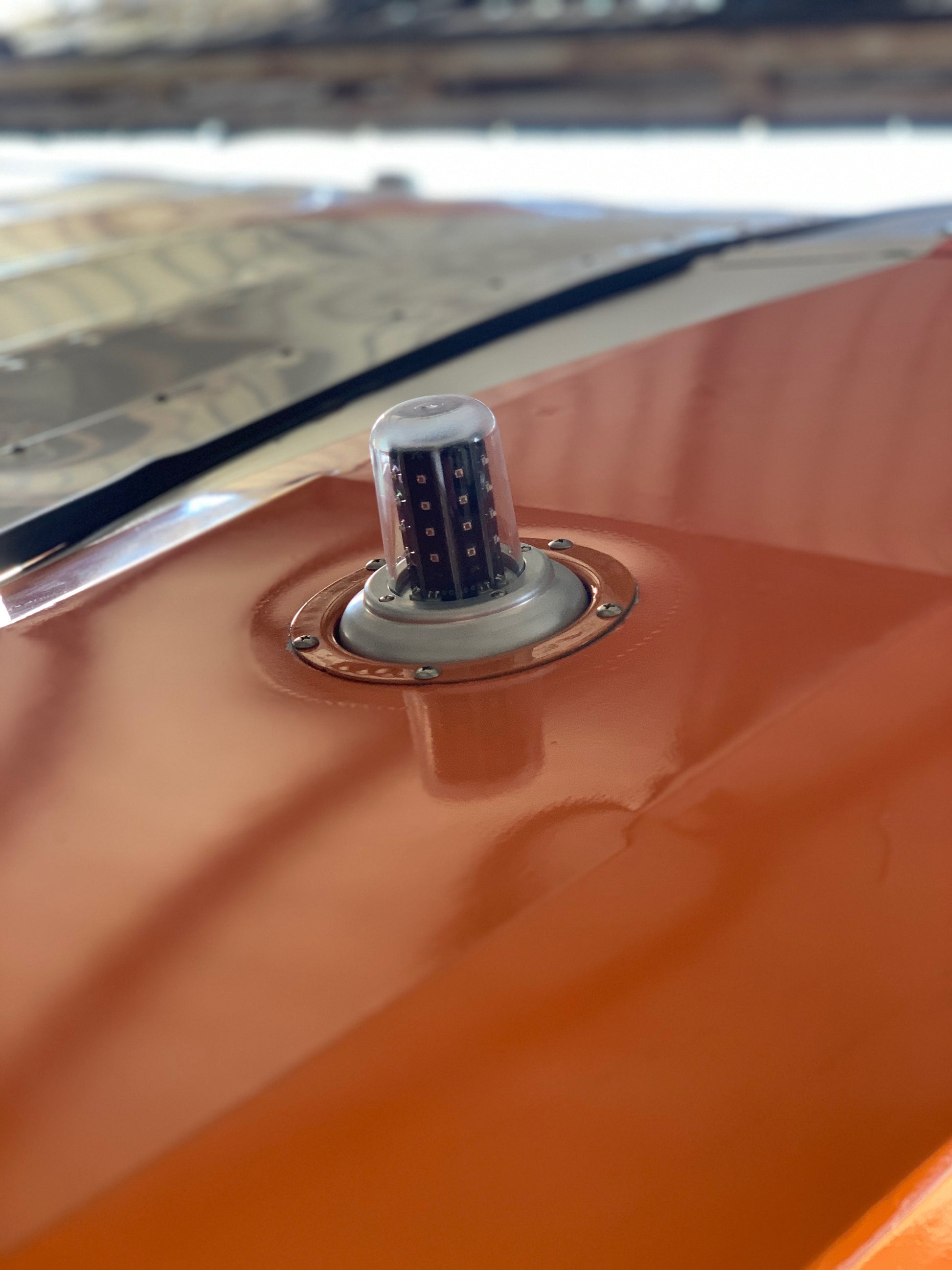

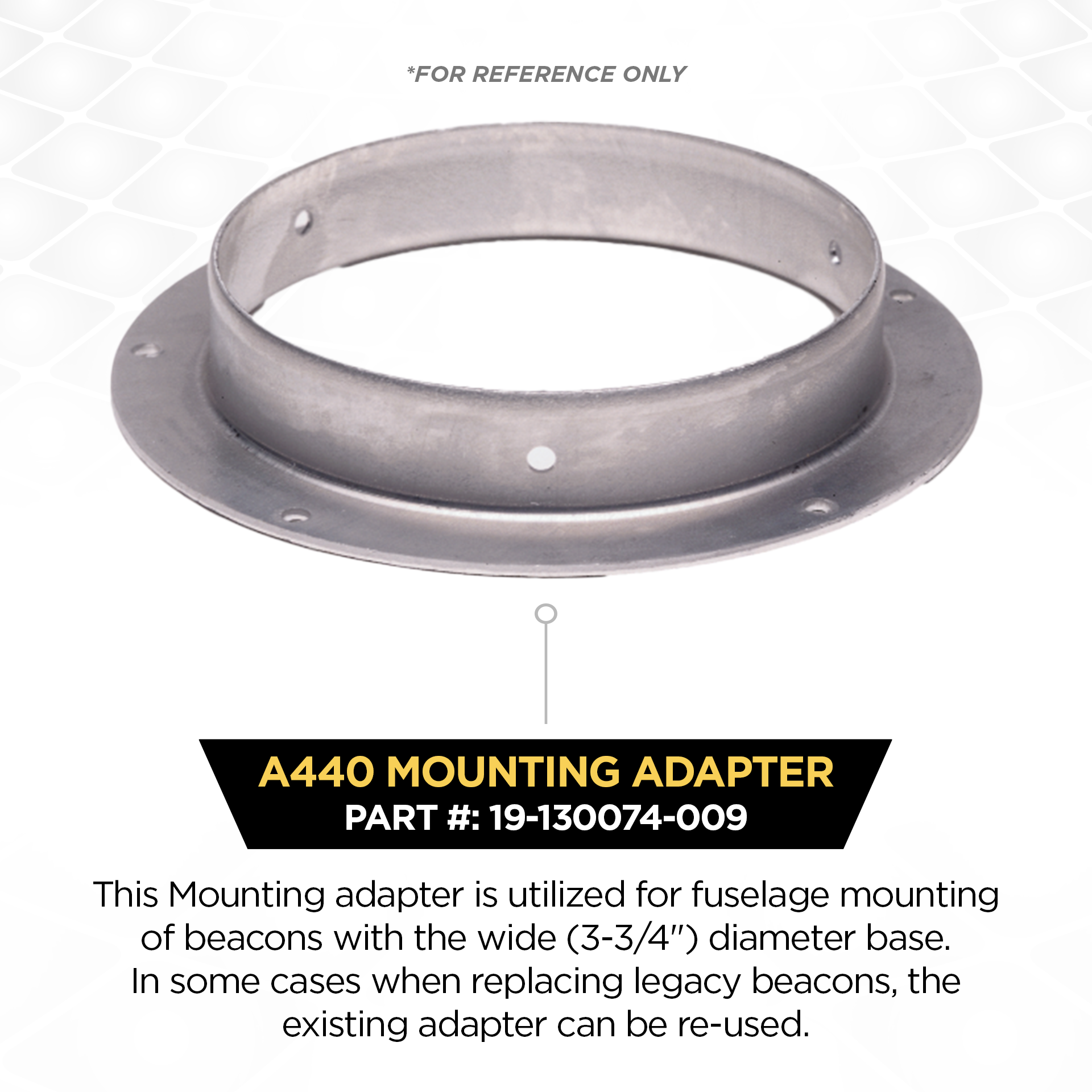

Fuselage Mounting
